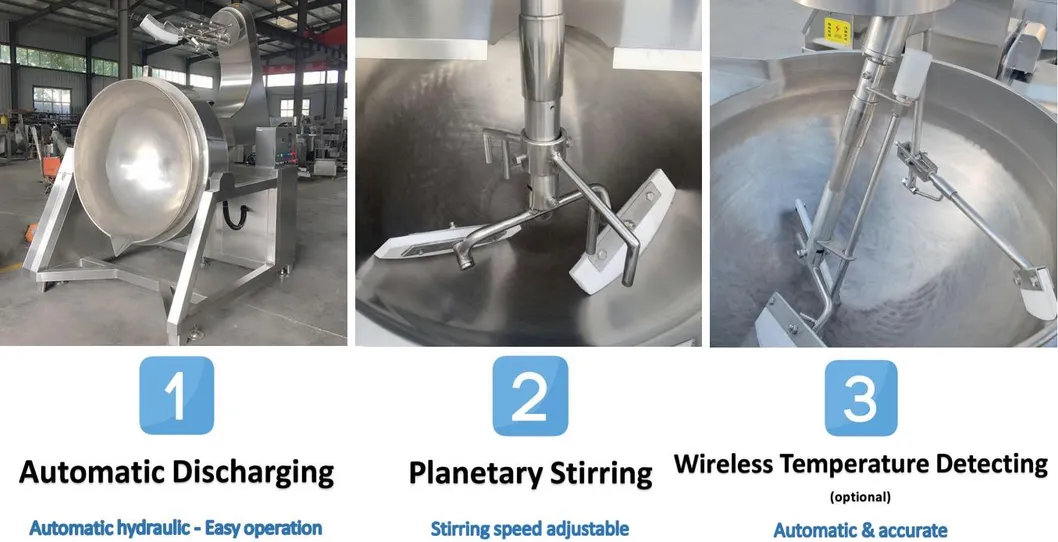

This Industrial Big Capacity Oil Jacketed Cooking Mixer Pot Peanut Vegetable Large Steam Cooking Equipment is an automatic cooking machine, ranging from 100 liters to 1000 liters. It has the functions of automatic heating, automatic mixing, and automatic discharging. Its planetary stirring method mixes the cooking materials both left & right and up & down which mixes the materials more evenly. The bottom and side scrapers closely contact the pot body preventing the materials from pasting to the pot body.
Product Parameters
Volume
Pot Diameter
Mixing Method
Discharging
Dimension
Heating Source
100L
Φ800mm
Planetary stirring (variable speed)
Automatic hydraulic
1650*1300*1550mm
1. Electric Induction
2. Gas
3. Gas Conduction Oil
4. Steam
5. Electric Conduction Oil
200L
Φ900mm
1750*1400*1600mm
300L
Φ1000mm
1850*1500*1650mm
400L
Φ1100mm
1950*1600*1700mm
500L
Φ1200mm
2050*1700*1750mm
600L
Φ1200mm
2050*1700*1800mm
800L
Φ1400mm
2600*2000*1850mm
1. Gas
2. Electric Induction
1000L
Φ1400mm
2600*2000*1900mm
Detailed Photos

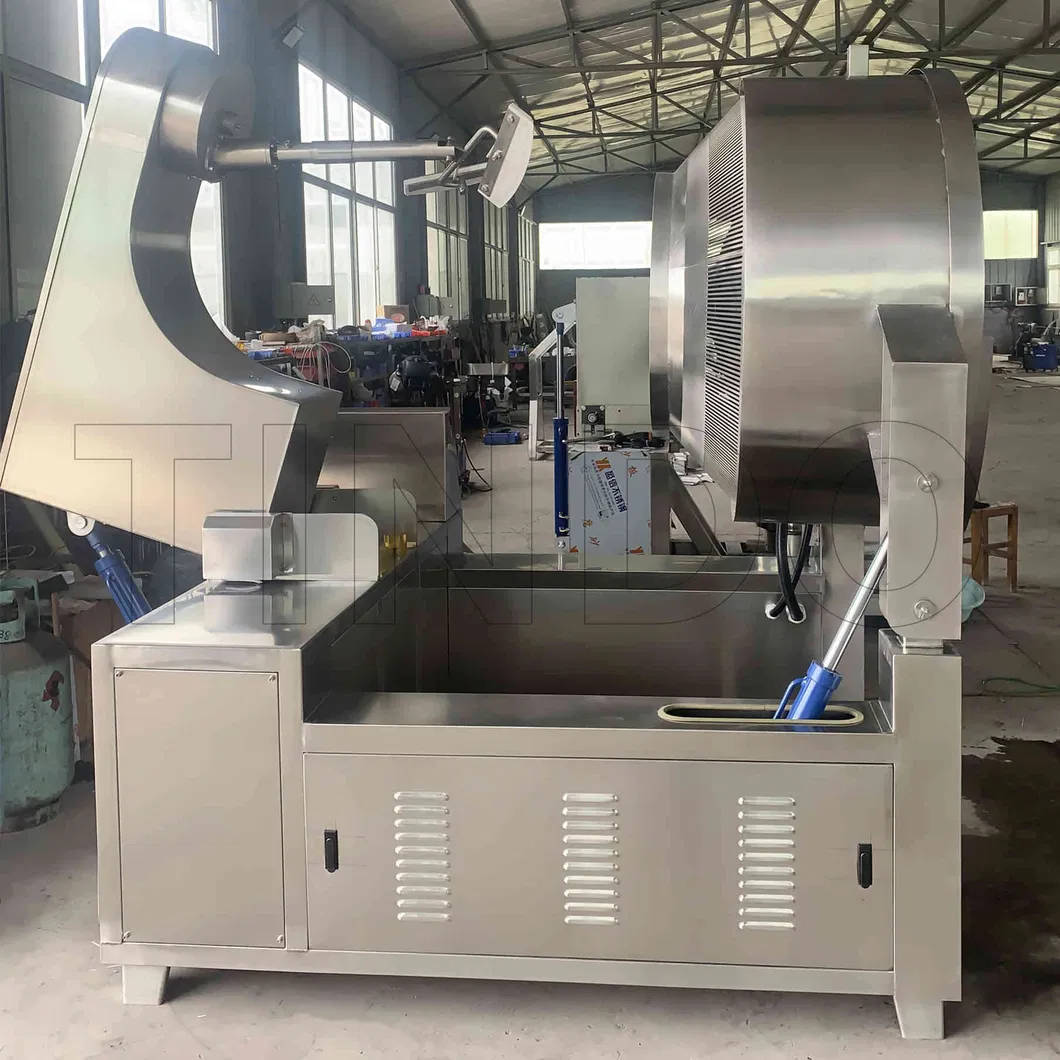

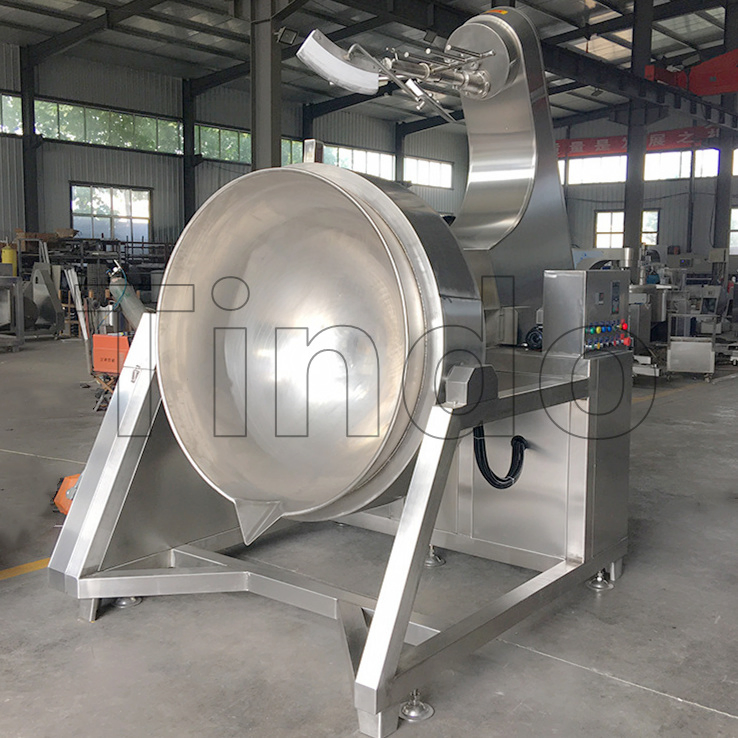

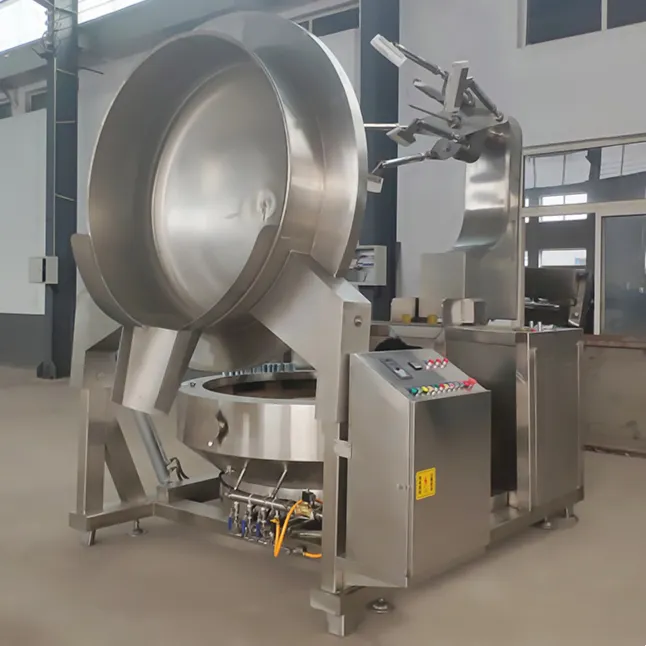

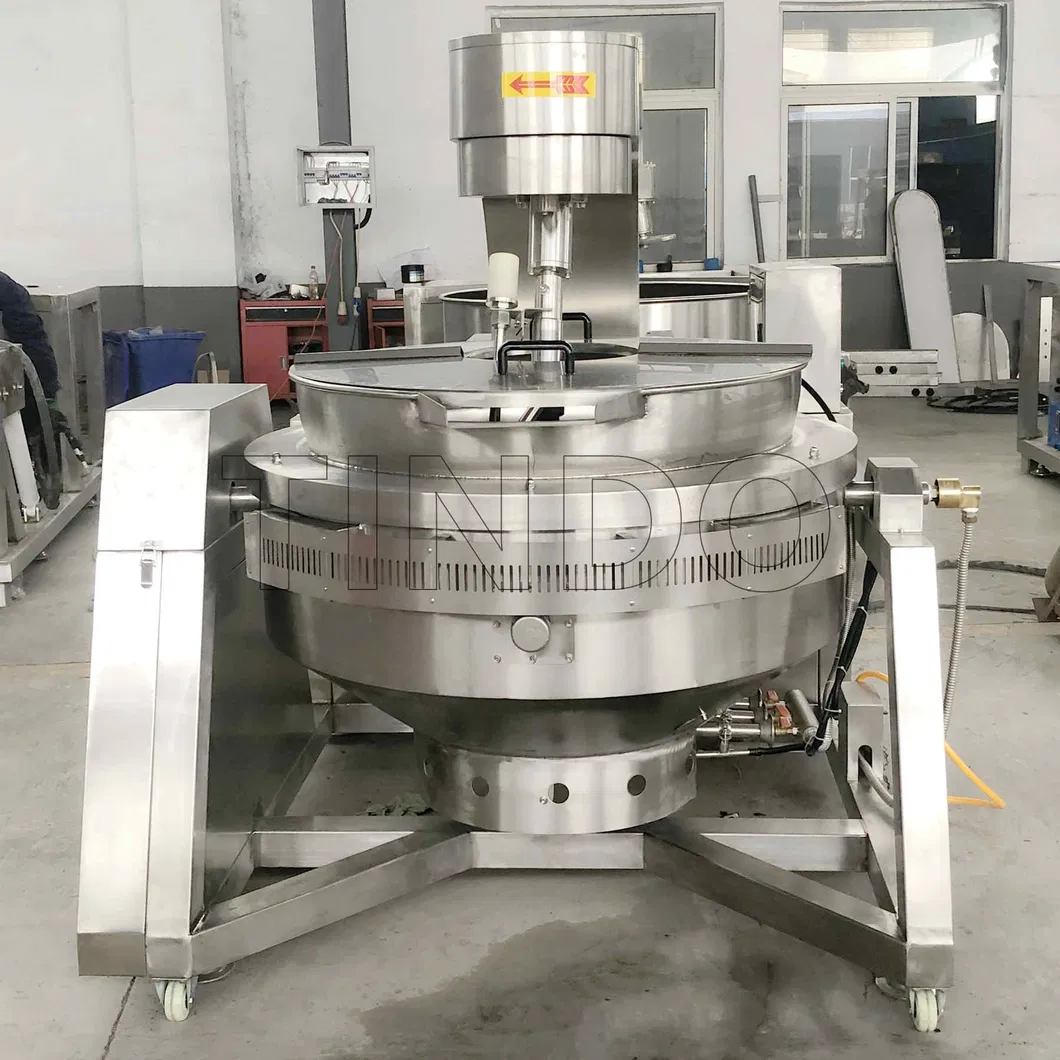

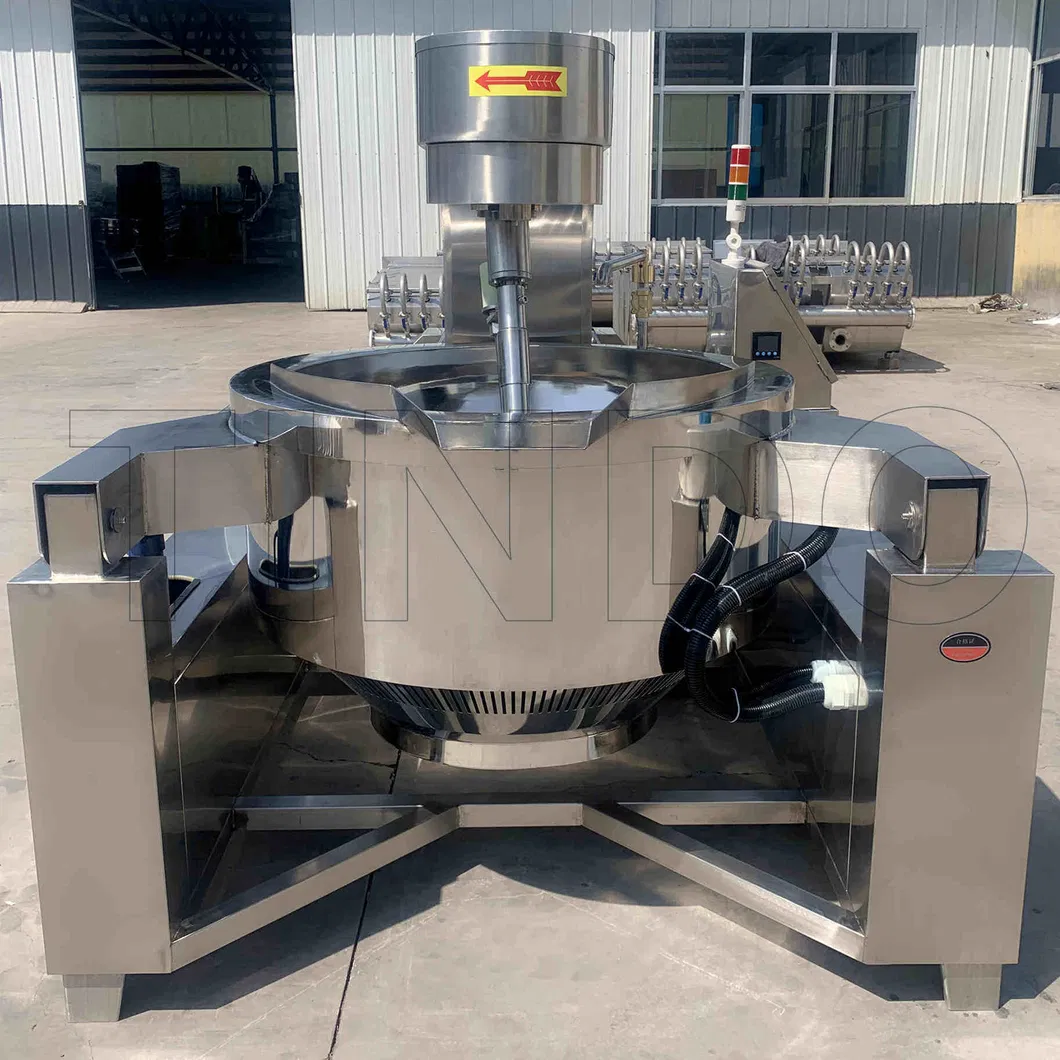

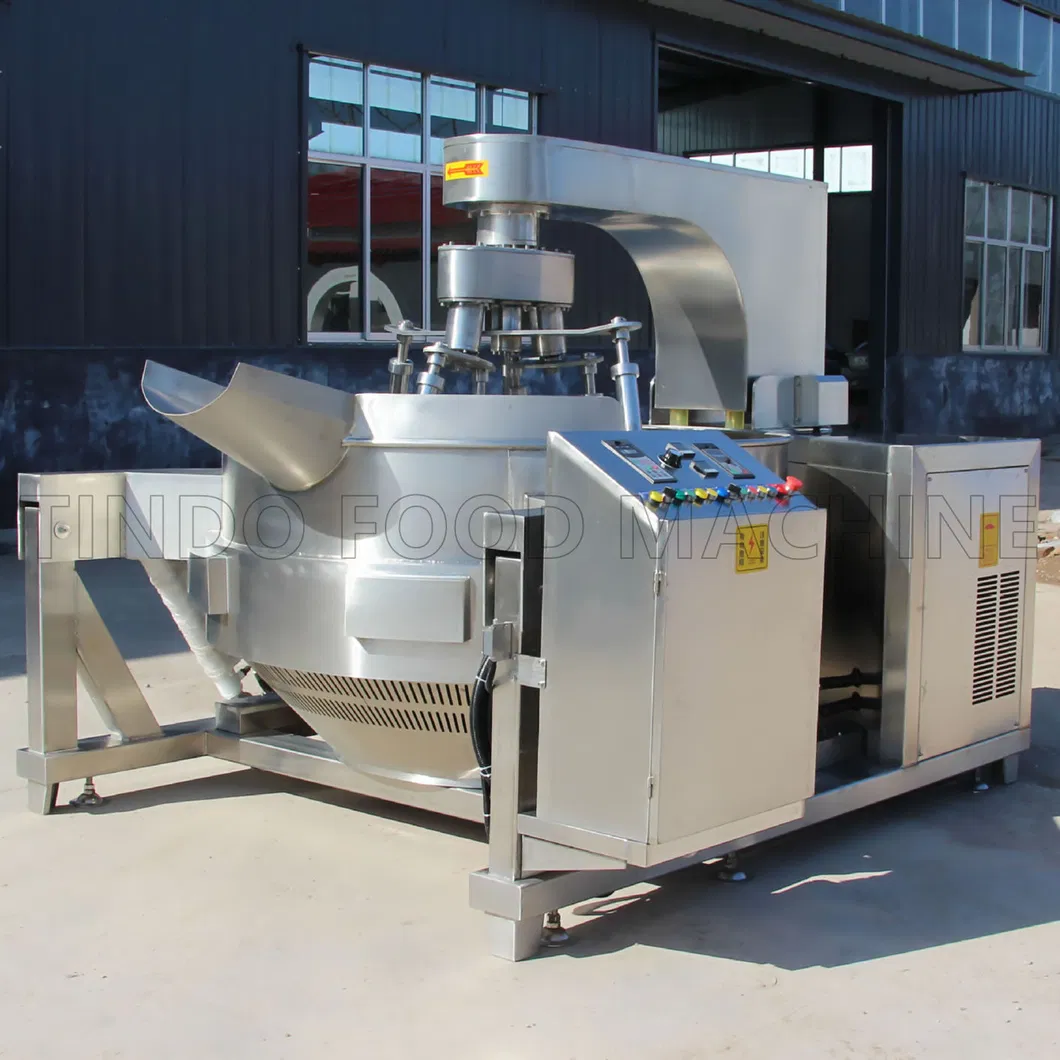

1. Fully Automatic Cooking Mixer

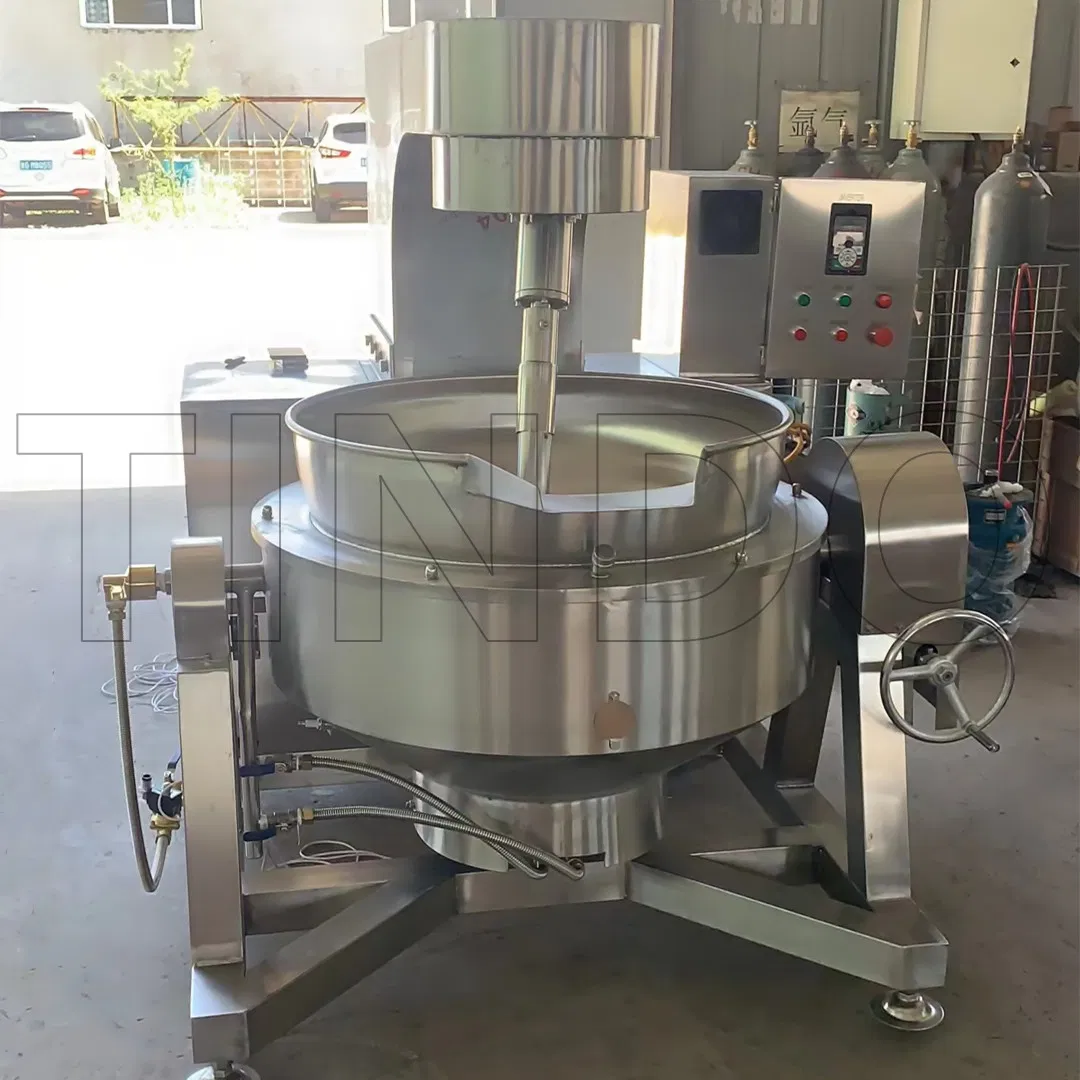

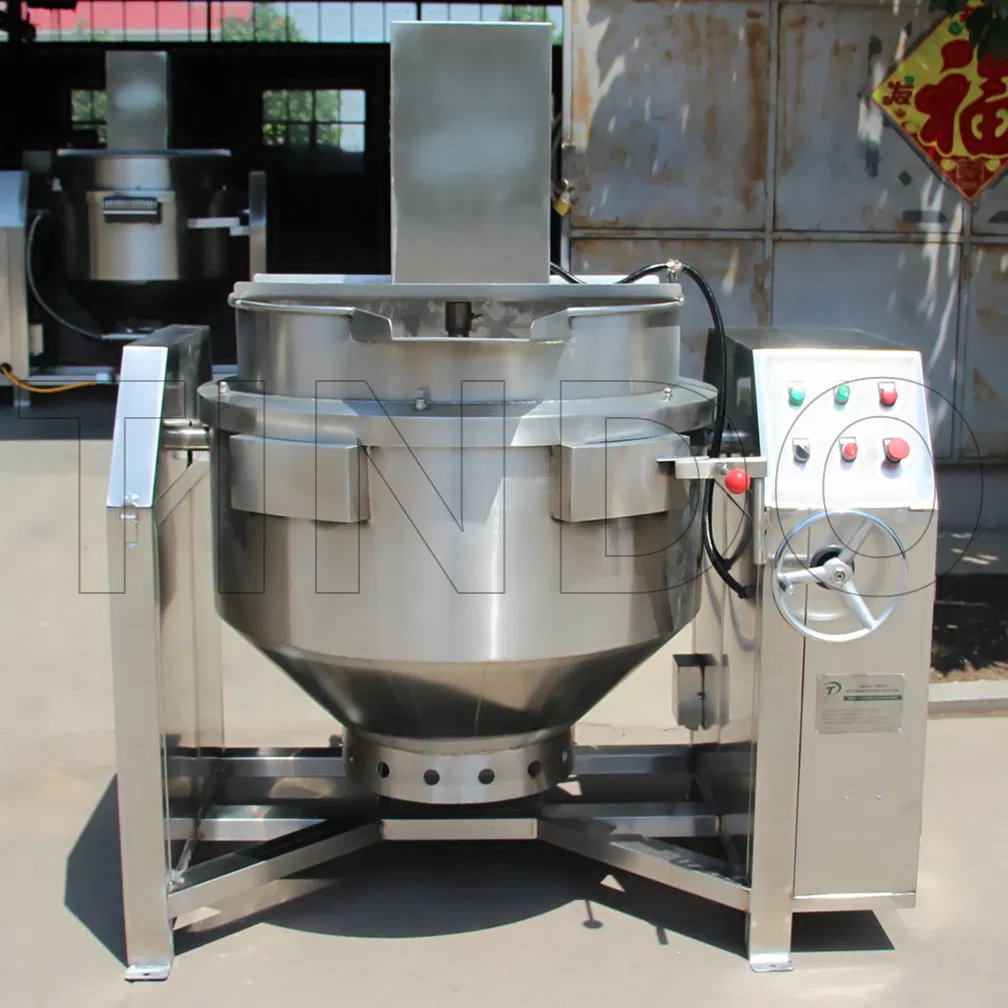

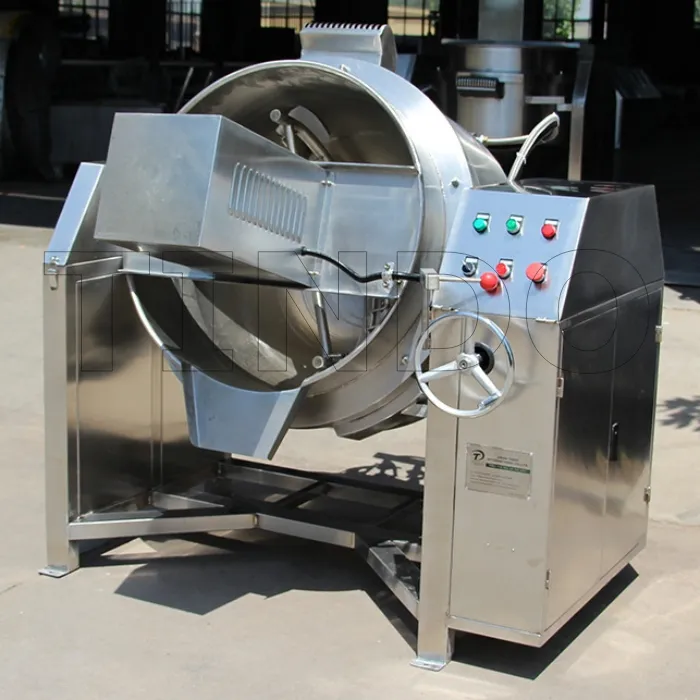

2. Semi-automatic Cooking Mixer
For more models, please send an inquiry.
Application
This Industrial Big Capacity Oil Jacketed Cooking Mixer Pot Peanut Vegetable Large Steam Cooking Equipment can be used for cooking, boiling, stir-frying, stewing, and frying various kinds of foods, such as bean paste, chili sauce, fruit jams, candy, chocolate, cake fillings, porridge, soup, vegetables, seafood, etc.
Frequently Asked Questions (FAQ)
1. What power sources are available for this industrial cooking mixer?
This industrial cooking mixer can be powered by steam, gas, electric jacketed, and electric induction. This variety allows facilities to choose the most efficient heating medium according to their existing configurations.
2. How does the planetary stirring method benefit food processing?

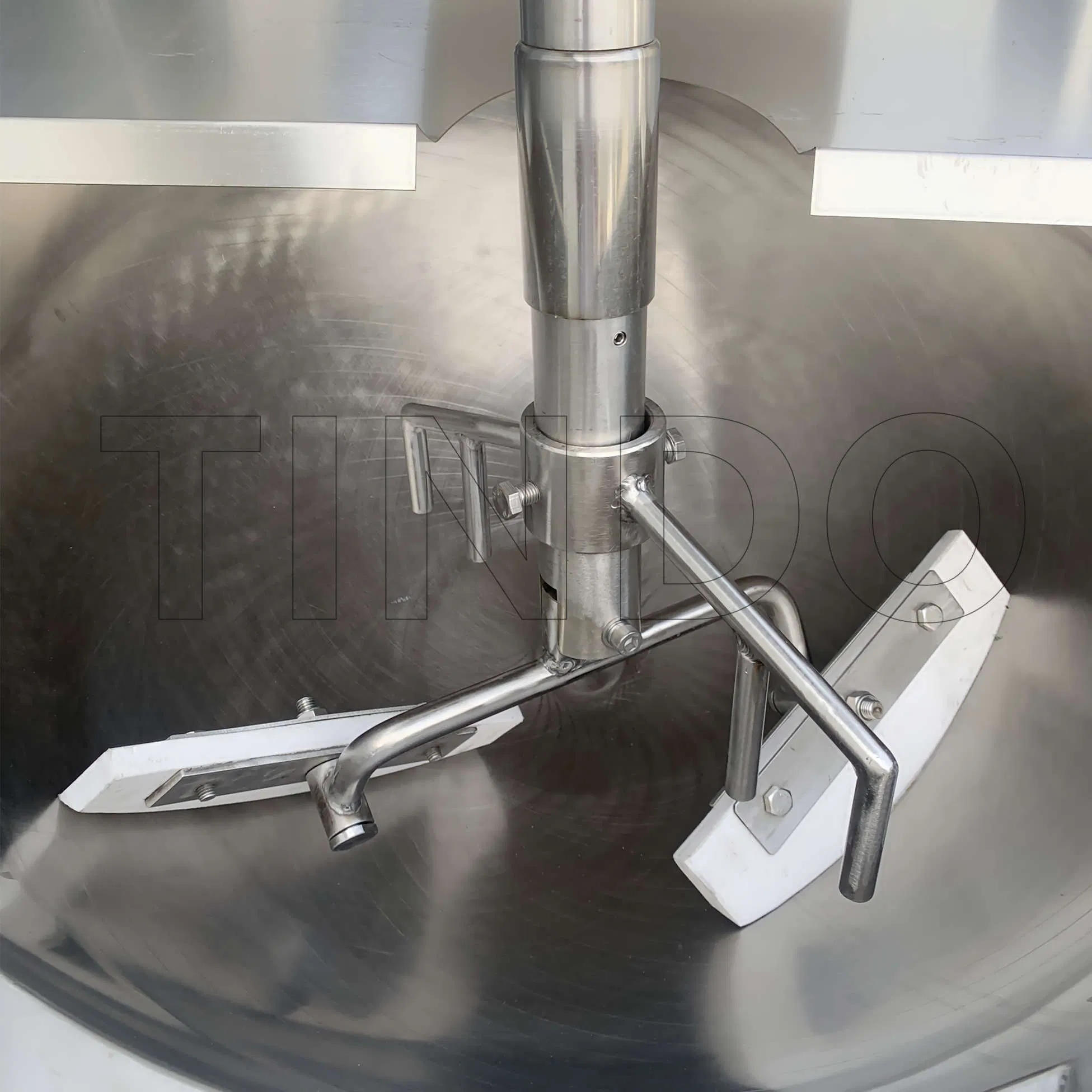

The planetary stirring method moves the mixer both left & right and up & down. Combined with scrapers that closely contact the pot body, it ensures the materials are mixed uniformly and prevents ingredients from sticking or burning on the bottom and sides.
3. What capacity options do you offer for the large cooking pots?
We offer standard capacities ranging from 100L up to 1000L (including 100L, 200L, 300L, 400L, 500L, 600L, 800L, and 1000L). Customization options can be discussed based on your production requirements.
4. Can speed and temperature parameters be customized or controlled during operation?
Yes, the mixing speed is adjustable and the temperature is fully controllable. In addition, an optional PLC system and timing device are available to fully automate these settings for repeatable quality.
5. How is the finished food product discharged from the cooking mixer?
The machine is designed with an automatic hydraulic tiltable pot configuration or a bottom discharging outlet, making the removal of cooked foods fast, safe, and highly efficient.
6. What materials are used to construct the industrial cooking mixer?
To meet global sanitation requirements, the cooking mixer is constructed using premium, food-grade stainless steel options, including SS201, SS304, and SS316, and comes CE approved.
