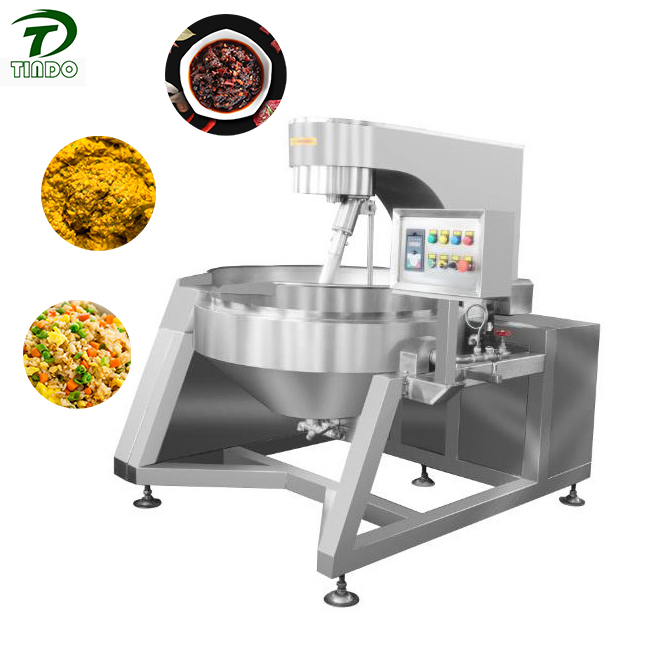

Caramel Sauce Automatic Jacketed Kettle Machine Electric Heating Cooking Pot Equipment

Customization: Available
After-sales Service: at Site / Online Service
Warranty: One Year

Product Description

Overview
Usage Foods, Bean Paste, Fruit Jams, Chili Sauce, Candy
Power Source Steam, Gas, Oil Jacketed, or Electric Induction
Timing Device Optional
Type Cooking Machine
Voltage 110V, 220V, 380V, 415V, 440V, etc.
Customized Customized
Name Industrial Stainless Steel Large Cooking Mixer
Volume 100L 200L 300L 400L 500L 600L 800L 1000L
Mixing Method Planetary Stirring
Mixing Speed Adjustable
Temperature Controllable
Pot Tilting Automatic Tiltable
PLC System Optional
Transport Package Plywood Case / FCL
Specification SS201, SS304, SS316
Origin China
HS Code 841981
Production Capacity 500 Sets/Year
Product Description

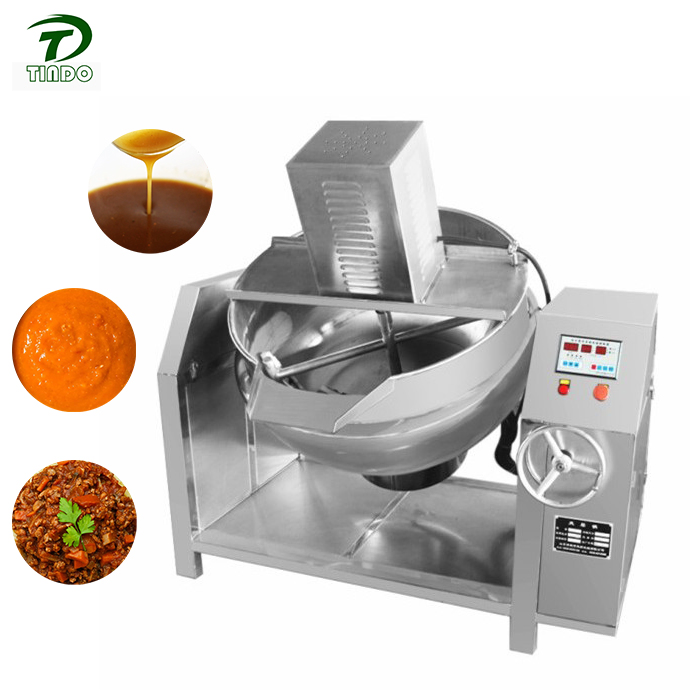

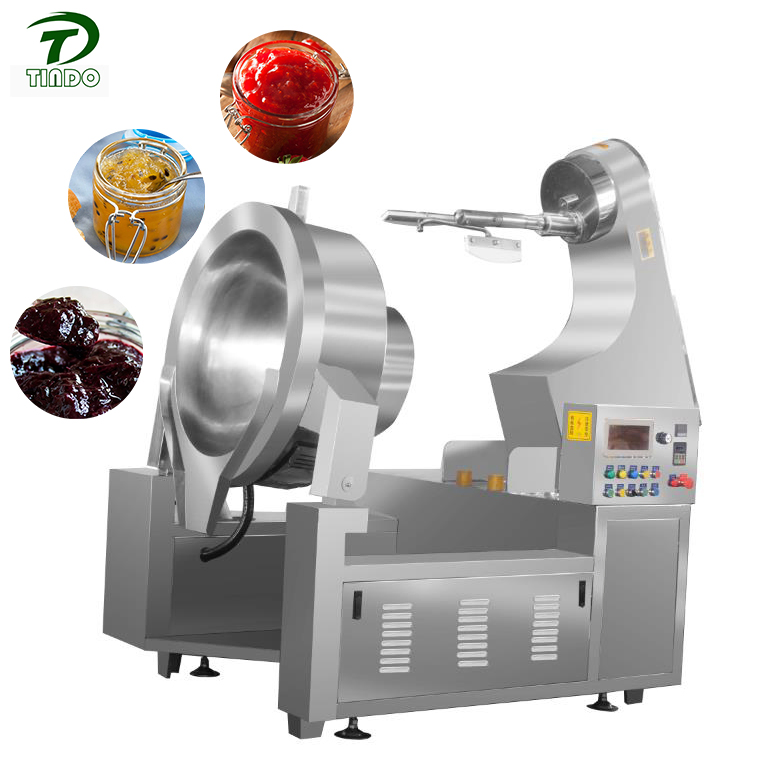

Caramel Sauce Automatic Jacketed Kettle Machine Electric Heating Cooking Pot Equipment

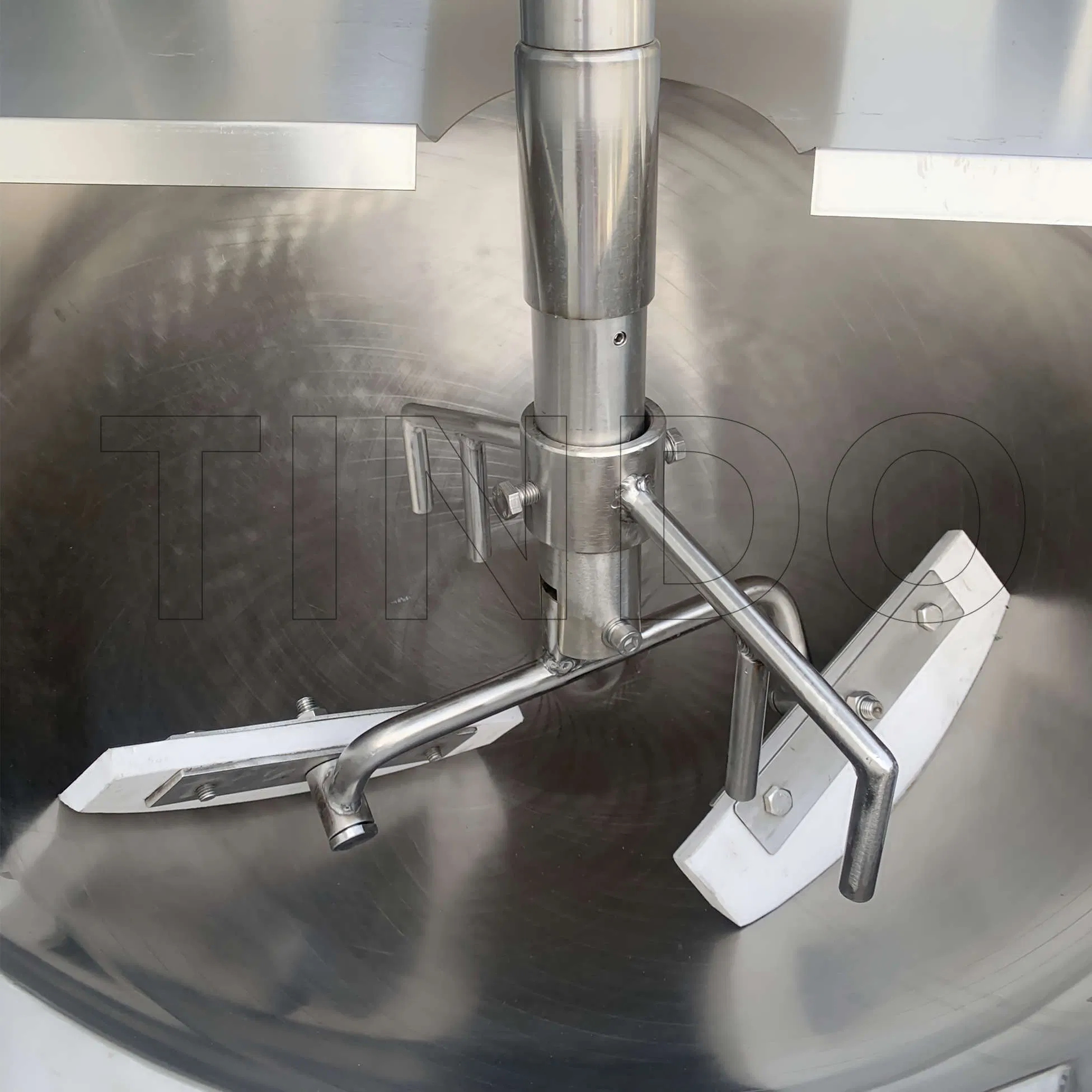

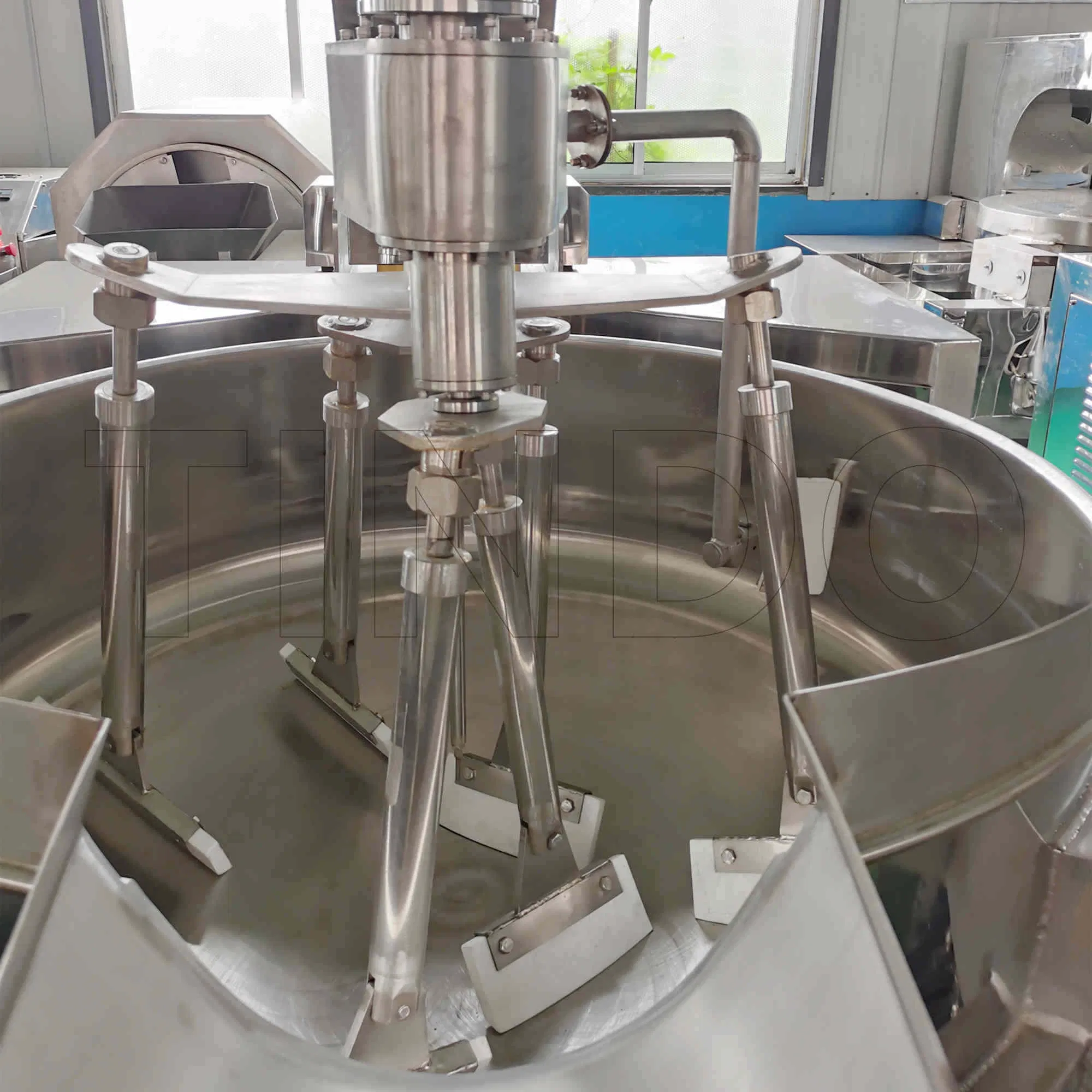

This Caramel Sauce Automatic Jacketed Kettle Machine Electric Heating Cooking Pot Equipment is an automatic cooking machine, ranging from 100 liters to 1000 liters. It has the functions of automatic heating, automatic mixing and automatic discharging. Its planetary stirring method mixes the cooking materials both left & right and up & down which mixes the materials more evenly. The bottom and side scrapers closely contact with the pot body preventing the materials from pasting to the pot body. We can provide cooking mixer machine with different heating sources to meet clients' capacity requirements.

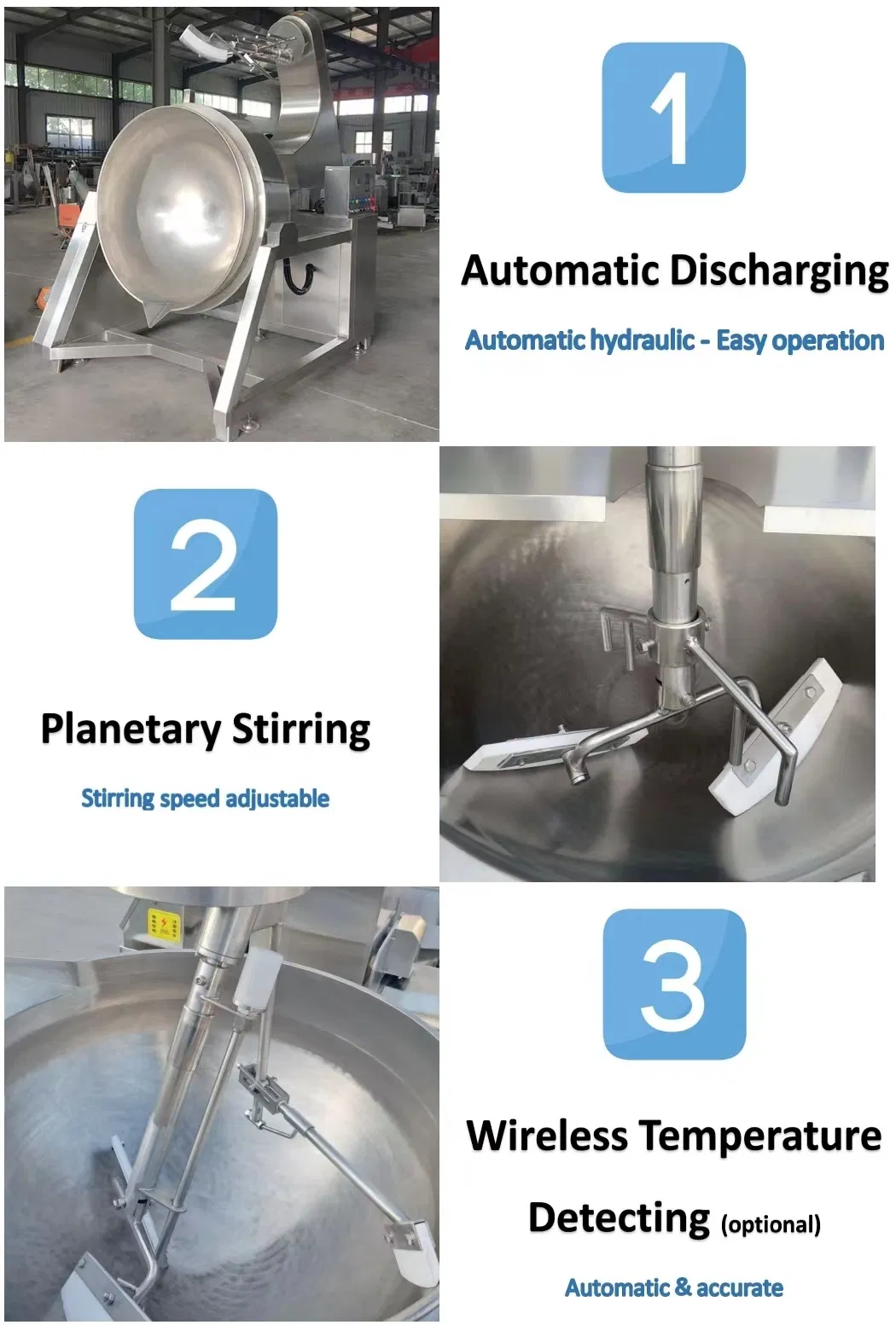

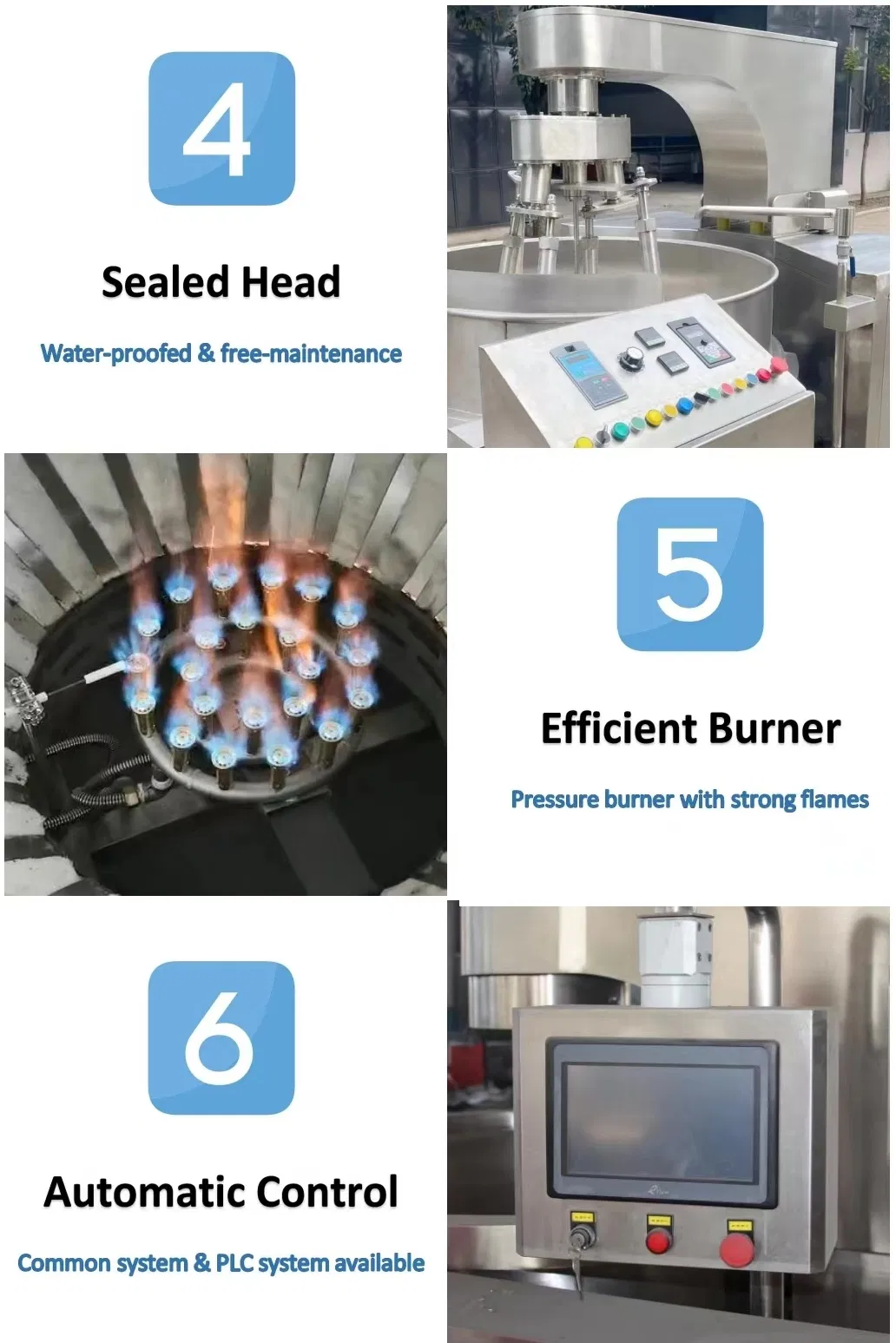

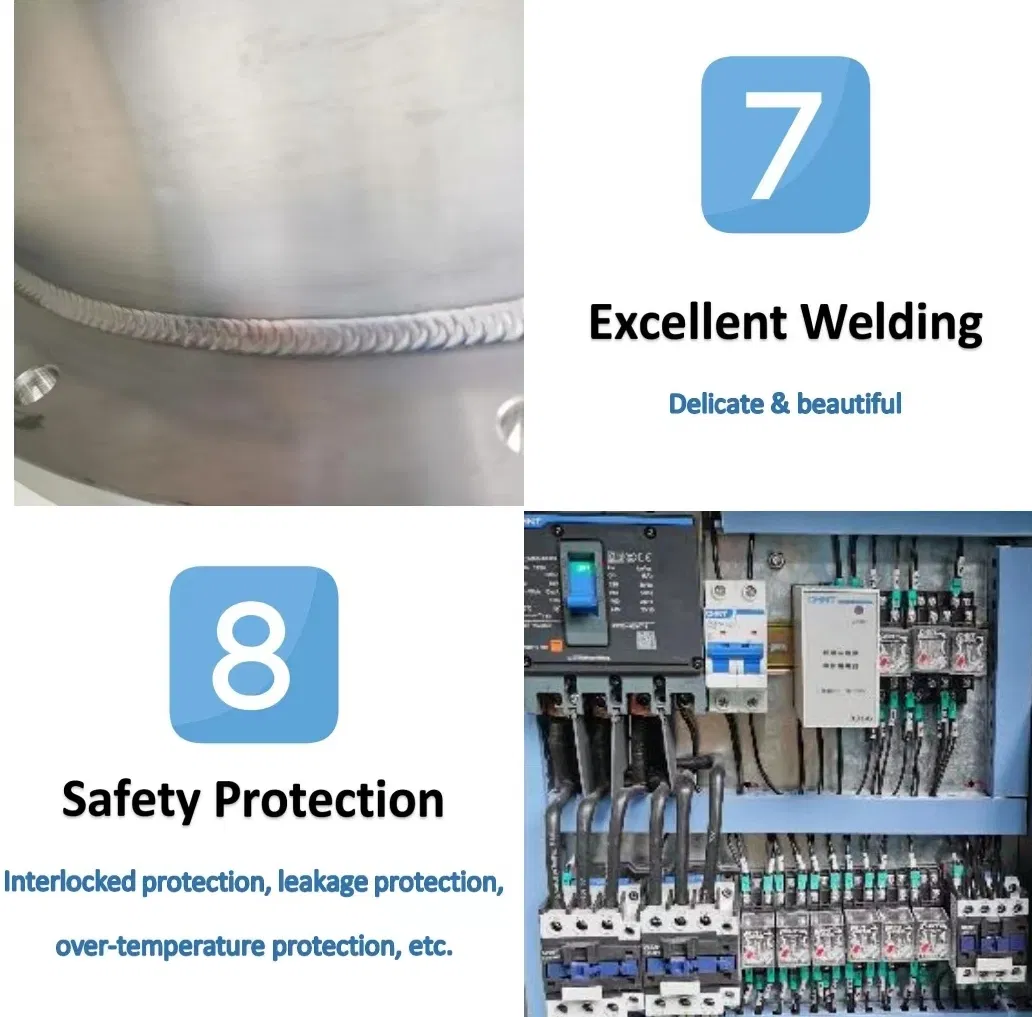

Caramel Sauce Automatic Jacketed Kettle Detail 1 Caramel Sauce Automatic Jacketed Kettle Detail 2 Caramel Sauce Automatic Jacketed Kettle Detail 3
Product Parameters
Volume Pot Diameter Mixing Method Discharging Dimension Heating Source
100L Φ800mm Planetary stirring (variable speed) Automatic hydraulic 1650*1300*1550mm 1. Electric Induction
2. Gas
3. Gas Conduction Oil
4. Steam
5. Electric Conduction Oil
200L Φ900mm 1750*1400*1600mm
300L Φ1000mm 1850*1500*1650mm
400L Φ1100mm 1950*1600*1700mm
500L Φ1200mm 2050*1700*1750mm
600L Φ1200mm 2050*1700*1800mm

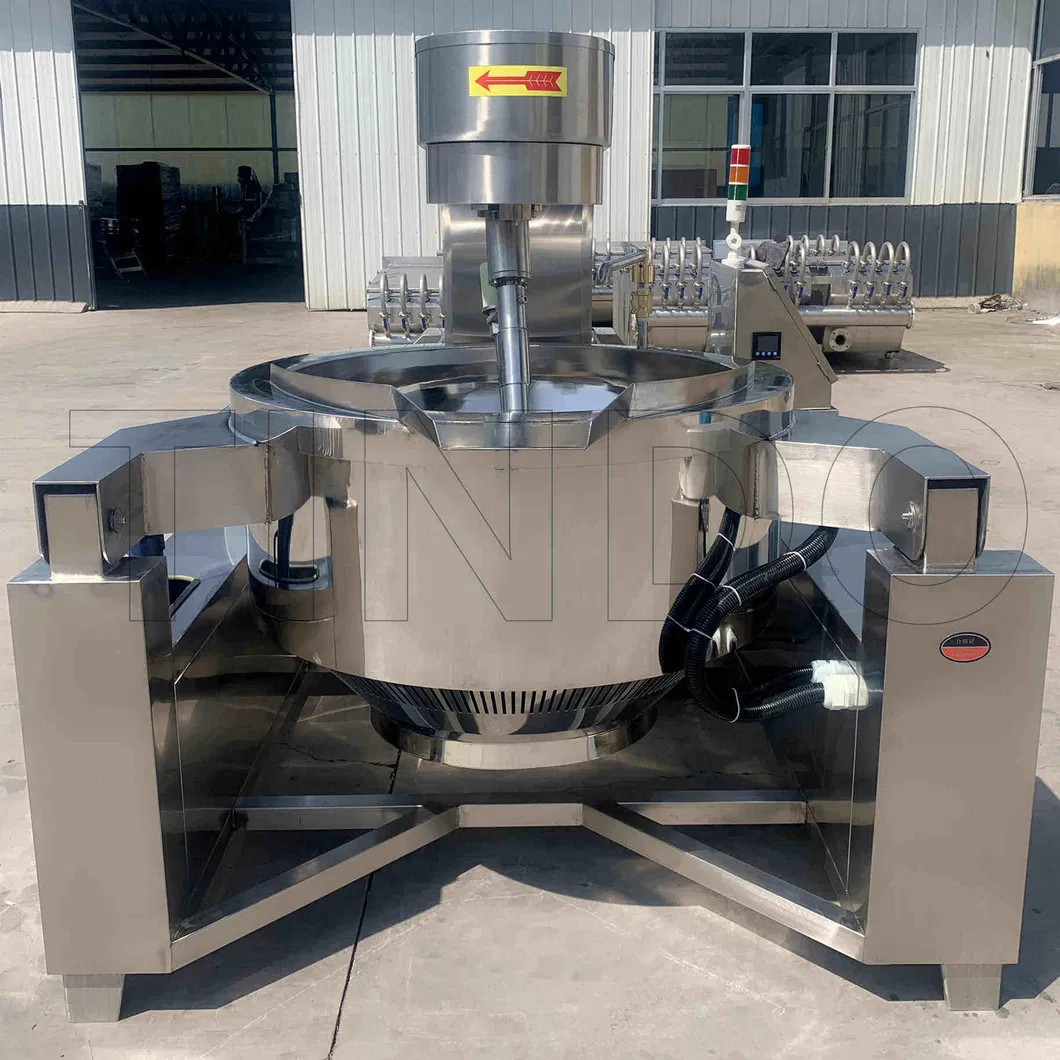

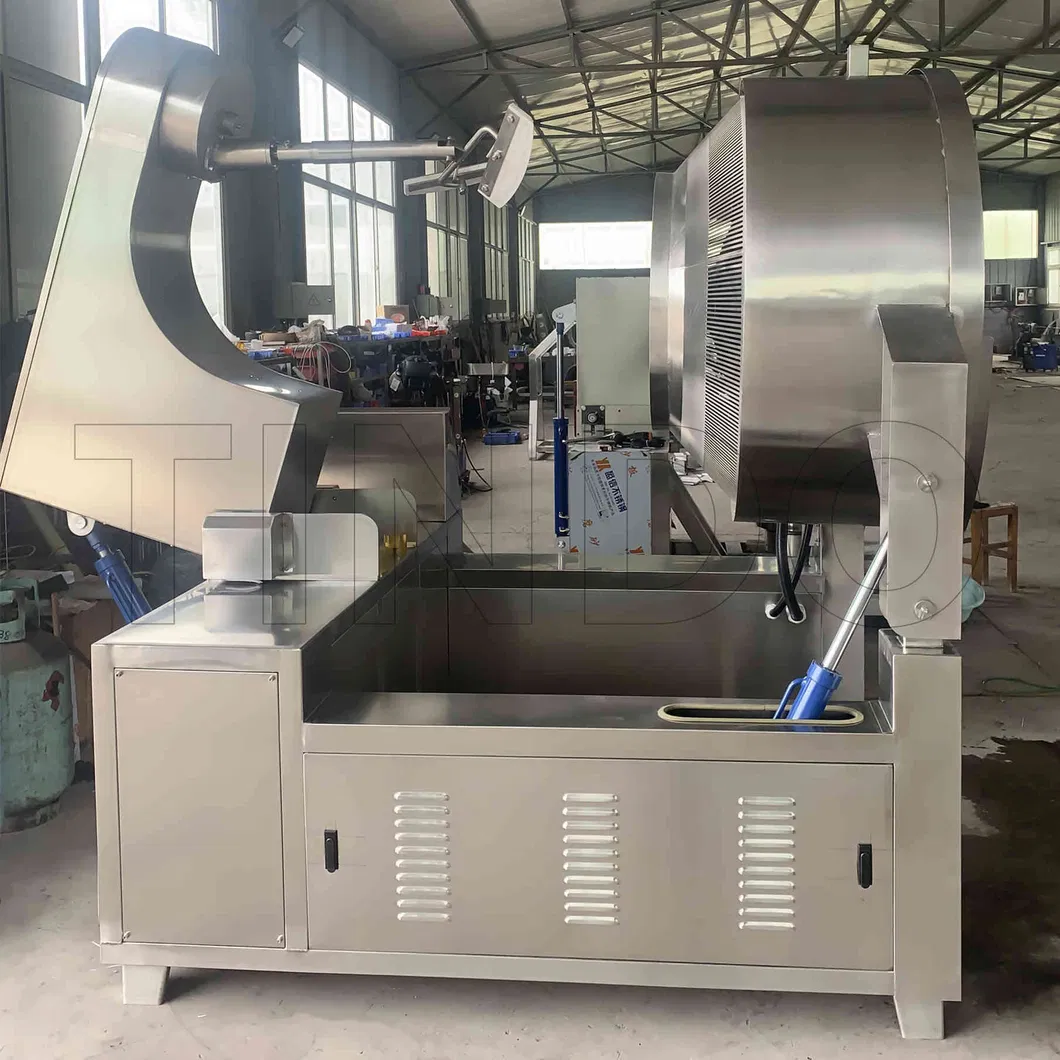

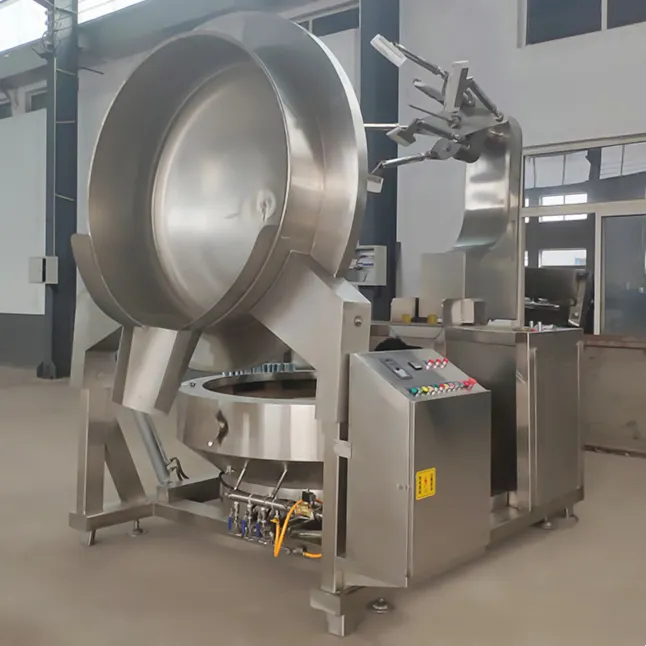

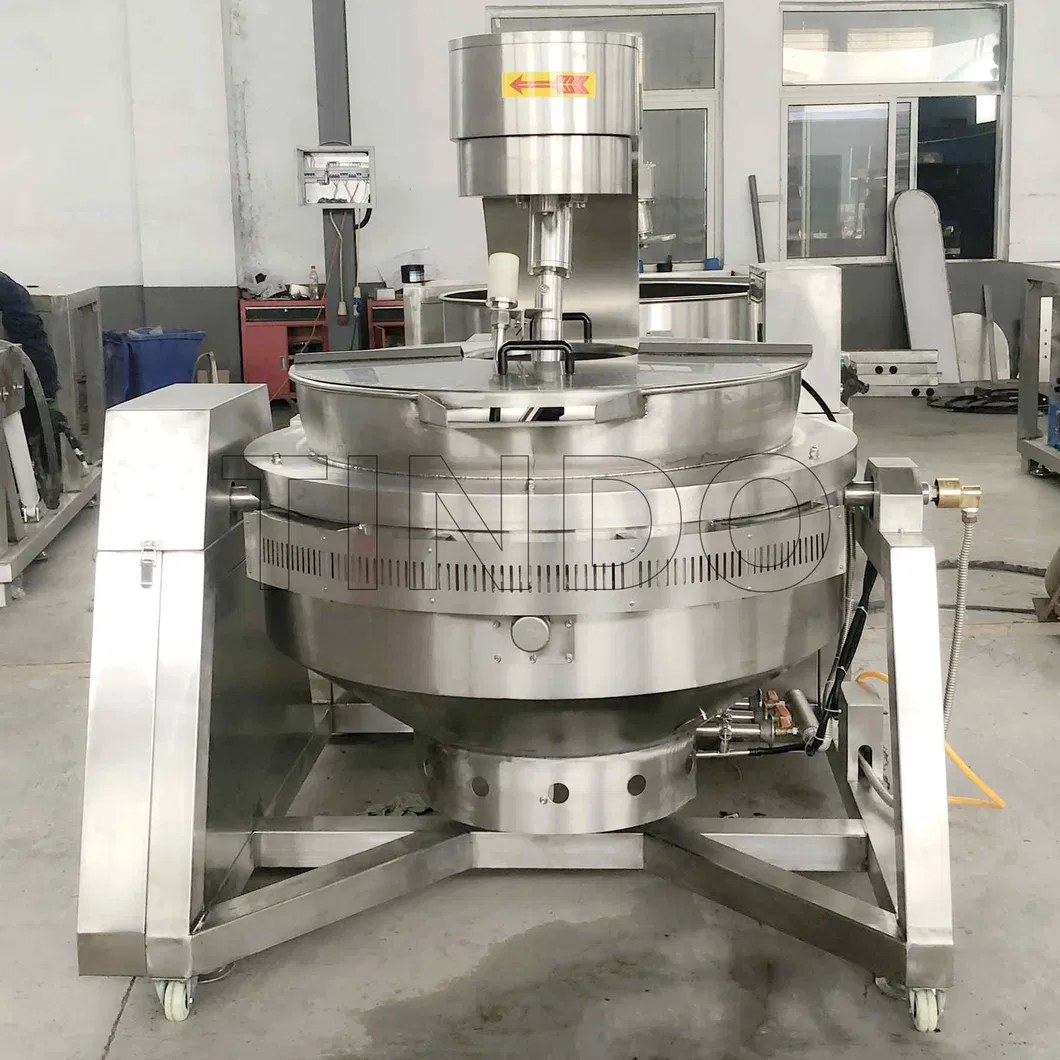

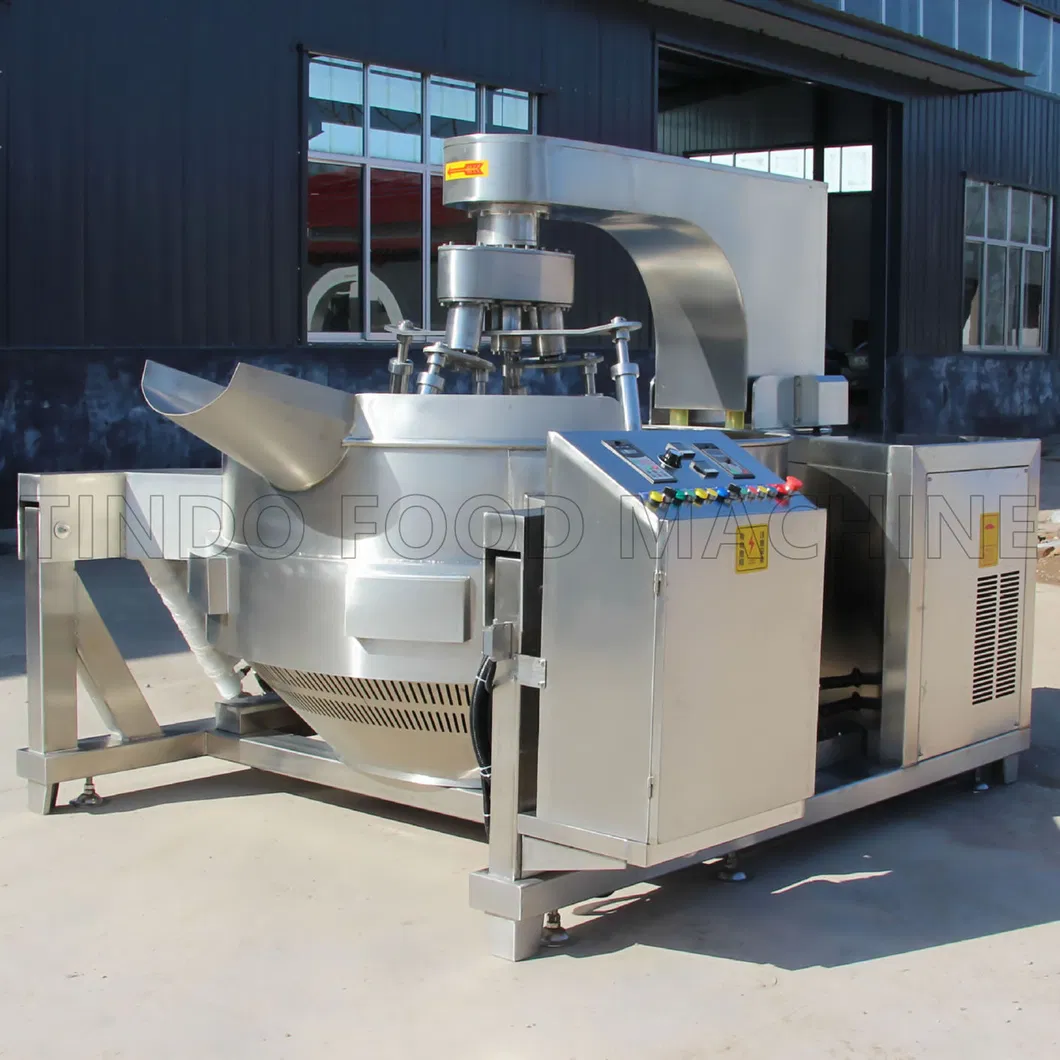

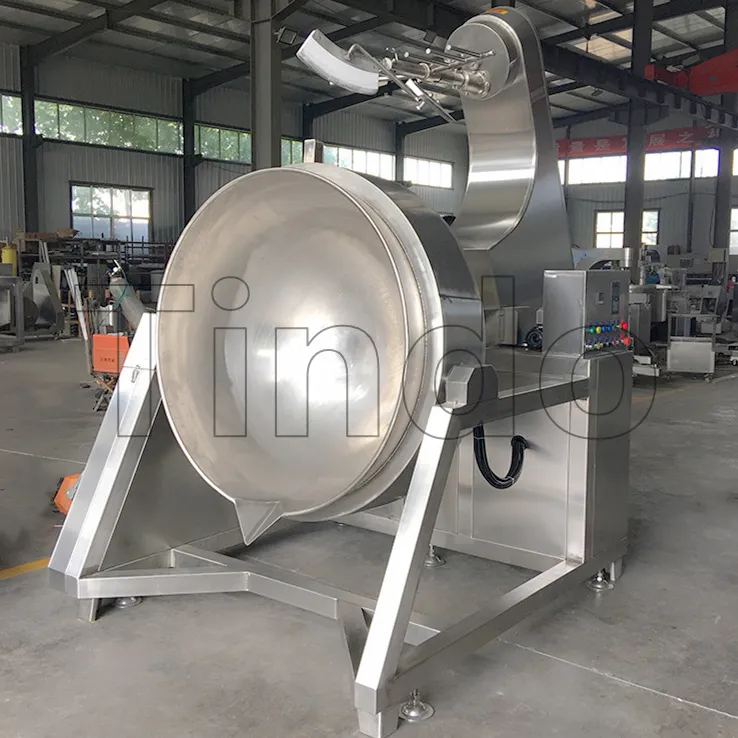

Detailed Photos
Application
This Caramel Sauce Automatic Jacketed Kettle Machine Electric Heating Cooking Pot Equipment can be used for cooking, boiling, stir-frying, stewing and frying various kinds of foods, such as bean paste, chili sauce, fruit jams, candy, chocolate, cake fillings, porridge, soup, vegetables, seafood, etc.
Application Showcase
Production Workshop
Production Facility View 1 Production Facility View 2 Production Facility View 3
Frequently Asked Questions (FAQ)
Q: What capacities are available for the Industrial Stainless Steel Large Cooking Mixer?
A: The volume options range from 100 liters to 1000 liters, including intermediate sizes like 200L, 300L, 400L, 500L, and 600L to fit different production needs.
Q: What heating sources can be used with this jacketed kettle machine?
A: We offer multiple heating source configurations, including Steam, Gas, Gas Conduction Oil, Electric Induction, and Electric Conduction Oil.
Q: How does the planetary stirring method benefit food processing?
A: The planetary stirring method mixes materials simultaneously in both left/right and up/down motions. Along with the bottom and side scrapers, it ensures even mixing and prevents materials from pasting or burning on the pot body.
Q: Is the discharging process manual or automatic?
A: The pot is designed with an automatic tiltable function powered by an automatic hydraulic discharging system for safe and efficient operation.
Q: Which kinds of foods are suitable for this machine?
A: It is ideal for cooking, boiling, stir-frying, stewing, and frying various foods such as bean paste, chili sauce, fruit jams, candy, chocolate, cake fillings, porridge, soup, vegetables, and seafood.
Q: Can the machine be customized to specific requirements?
A: Yes, the equipment supports customized specifications. Optional elements such as PLC systems and timing devices can be added, and different stainless steel specifications (SS201, SS304, SS316) are available.
