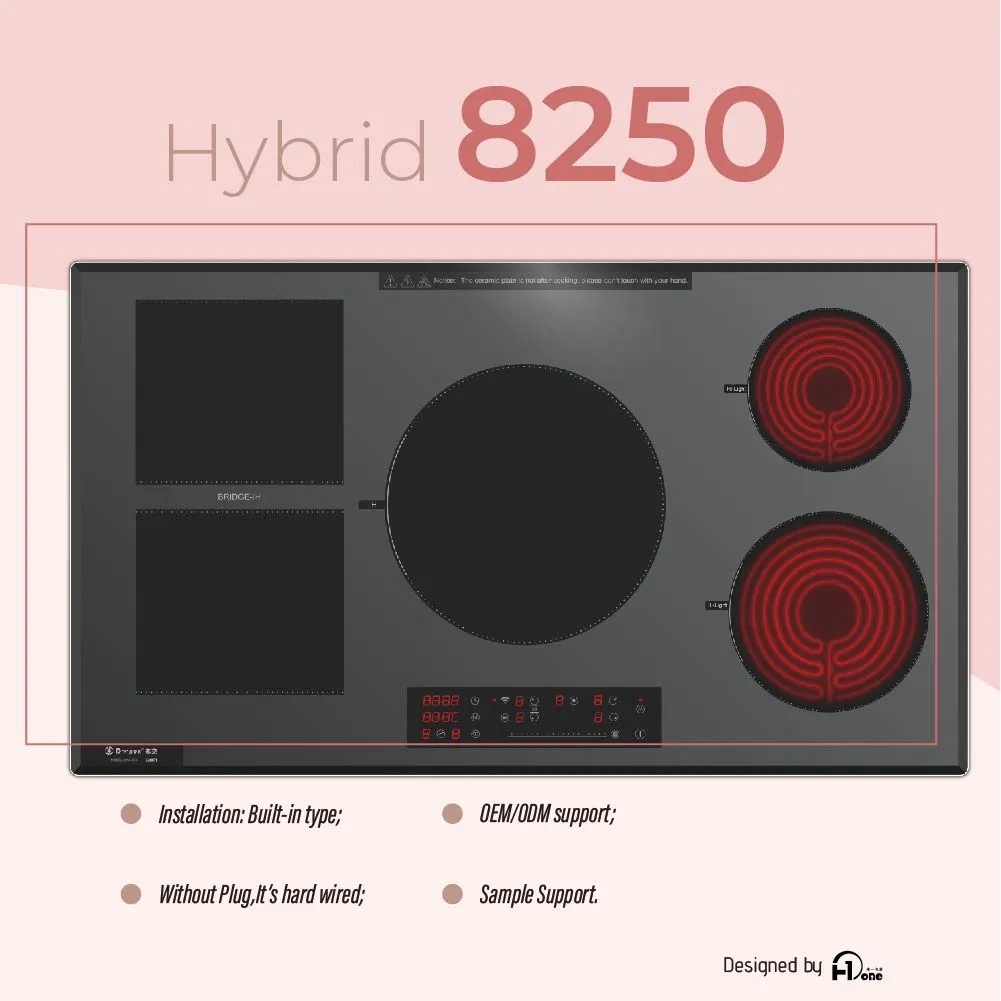

Hybrid Radiant-Induction Cooktop with Powerboost and Electronic Touch Controls with WiFi Connectivity
1 / 1
Hybrid Radiant-Induction Cooktop with Powerboost and Electronic Touch Controls with WiFi Connectivity

Hybrid Radiant-Induction Cooktop with Powerboost and Electronic Touch Controls with WiFi Connectivity

Send Inquiry

Product Description

Induction & Infrared Heating System

The New Concept of Induction Cooking System

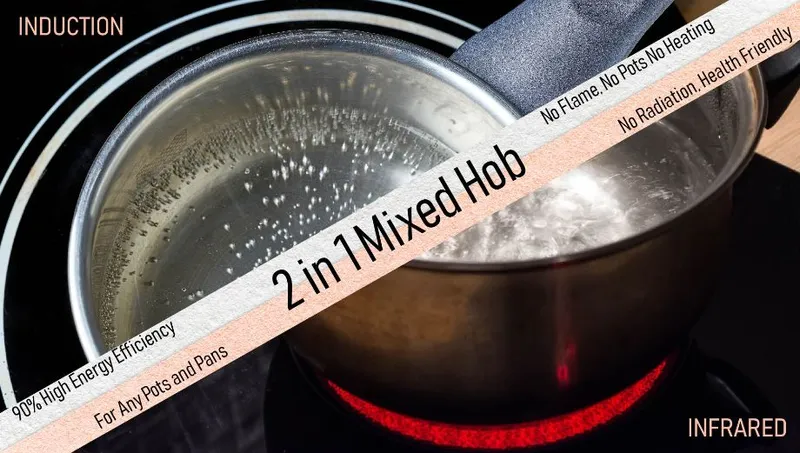

Hybrid Radiant-Induction Cooktop with Powerboost
Electronic Touch Controls with WiFi Connectivity
Hybrid Cooktop Showcase
Induction cooking technology
Smart kitchen cooktop features

Discover Model 8250-259

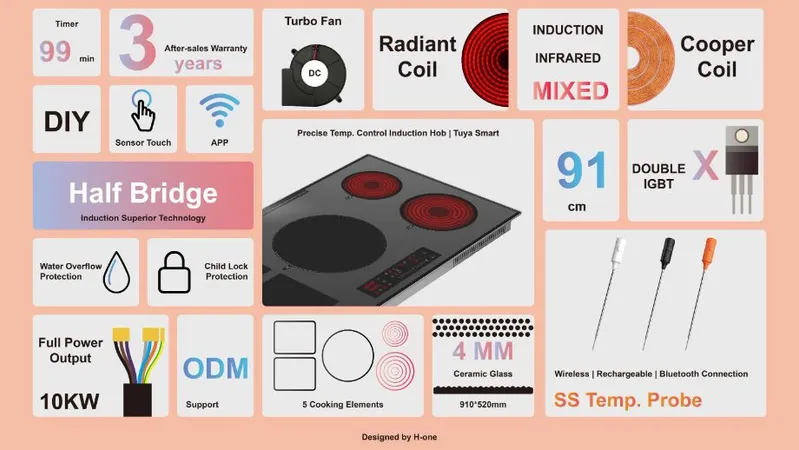

Cooktop specifications design
Detailed control panel display
Cooktop dimension layout
Safety and operational features

Basic Features

  • 910*520mm horizontal induction hob
  • Aluminum wrapping edge
  • 5 specialized cooking zones

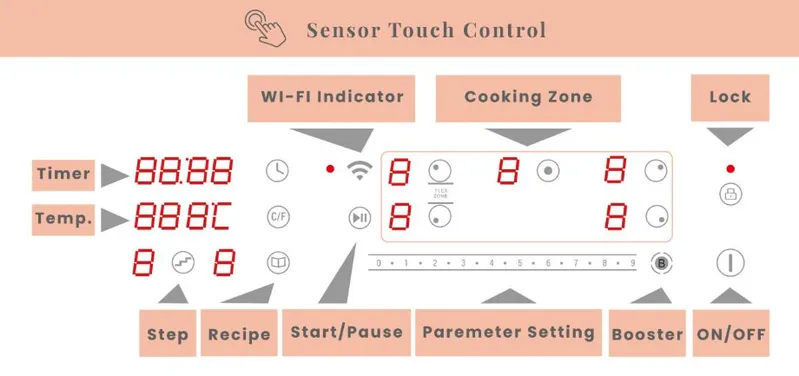

  • Touch control slider interface
  • Automatic pan detection system
  • Cooking time programmer (0-99 minutes)
  • 0-9 Power Levels with Booster for each burner
  • Independent zone programming control
  • Residual heat safety indicators
  • Safety blocking / Child Lock
  • Auto power rate & temperature adjustment
  • Overheating electric protection
  • Dry burning prevention technology
  • Voltage fluctuation detection & protection
  • Automatic idle shut-off safety system

Special Features

  • Precise temperature control for each burner
  • Create, edit, and record cooking processes
  • Save custom recipes (up to 9 presets)
  • Tuya smart device integration for remote status checks
  • Cloud recipes access via mobile application
  • Equipped with a wireless connection temperature probe

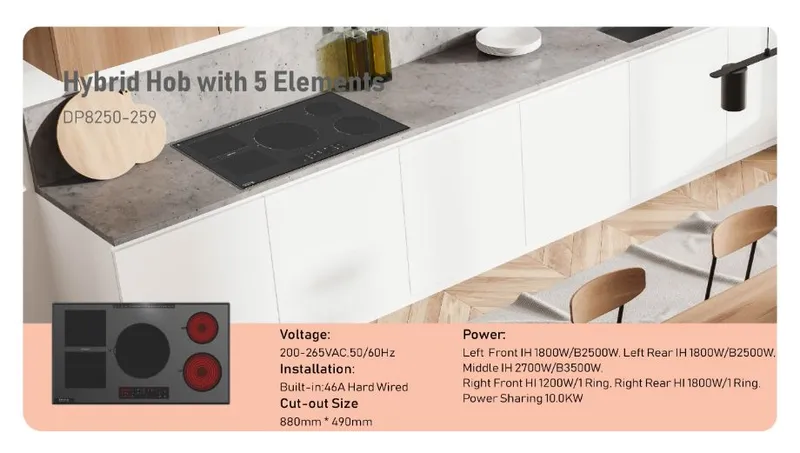

Technical Specifications

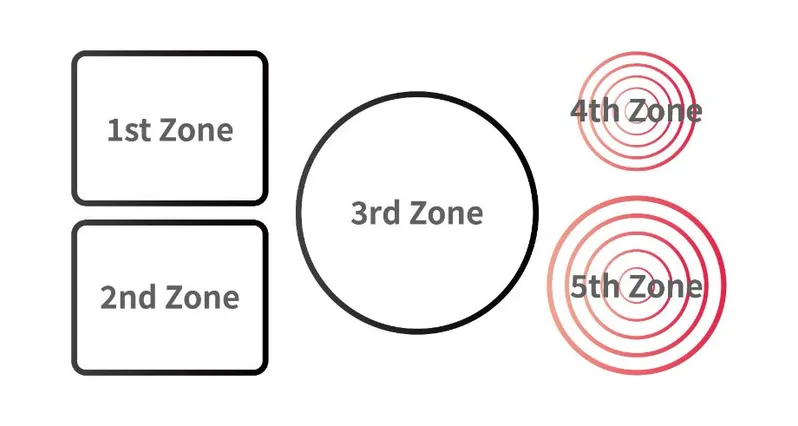

Cooking Zones

  • Left Front Induction: 210*180mm, 1800W / Booster 2500W
  • Left Rear Induction: 210*180mm, 1800W / Booster 2500W
  • Middle Induction: φ280mm, 2700W / Booster 3500W
  • Right Front Infrared: φ165mm, 1200W (1 Ring)
  • Right Rear Infrared: φ145mm/φ230mm, 1100W / 2200W (2 Rings)

Electric Connection

  • Power Source: 220~240 V, 50-60Hz
  • Total Power Rating: 10000W

Compatible Cookware Selection

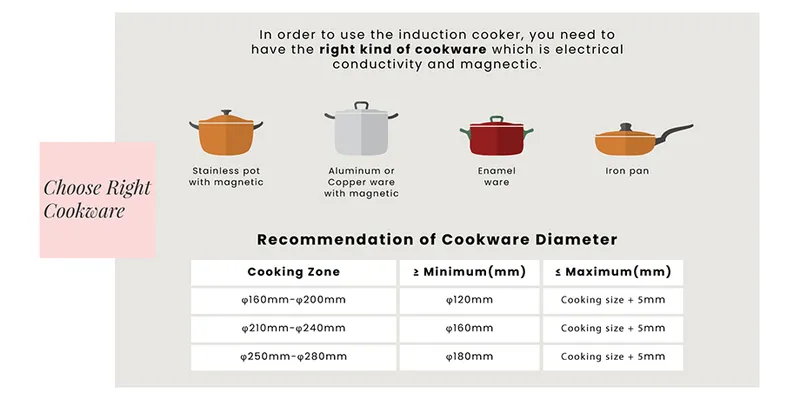

Cookware Selection Guide for Induction and Infrared

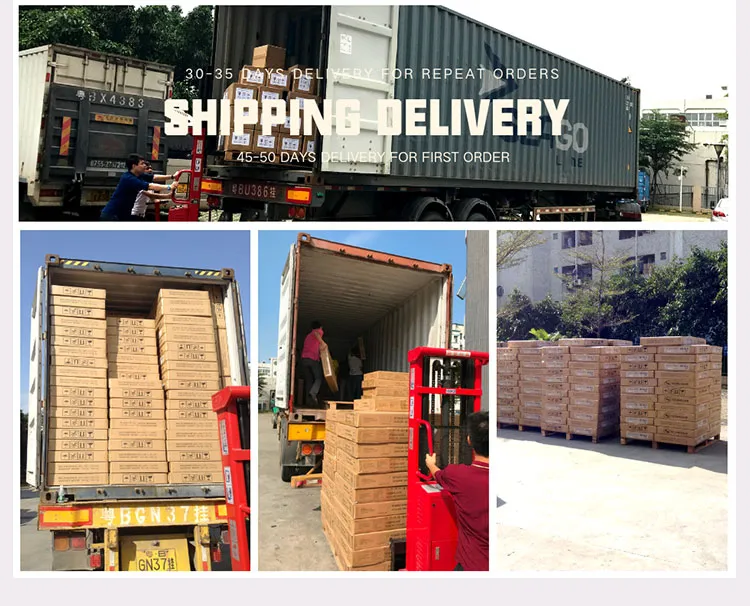

Shipping & Logistics Information

Dimensions & Weight Specifications
Product Size 910 * 520 * 55 mm
Cutout Size 880 * 490 mm
Carton Size 1025(L) * 625(W) * 115(H) mm
Gross Weight 19.489 Kg
Container Loading Capacity
20GP Container 330 pcs
40GP Container 700 pcs
40HQ Container 850 pcs
Product packaging and shipping layout

Induction Heating System Principles

What is an Induction Cooker?

Induction cooktops are widely utilized for both domestic and commercial culinary applications. An alternating electrical current is routed through a copper coil beneath the glass surface, creating an oscillating magnetic field. This field induces a resistive eddy current directly inside the magnetic cookware. The energy heats the cooking vessel instantly, reaching heat efficiency levels of 88%-90% with instantaneous temperature adjustments, optimizing time and energy.

Induction working principle coil diagram

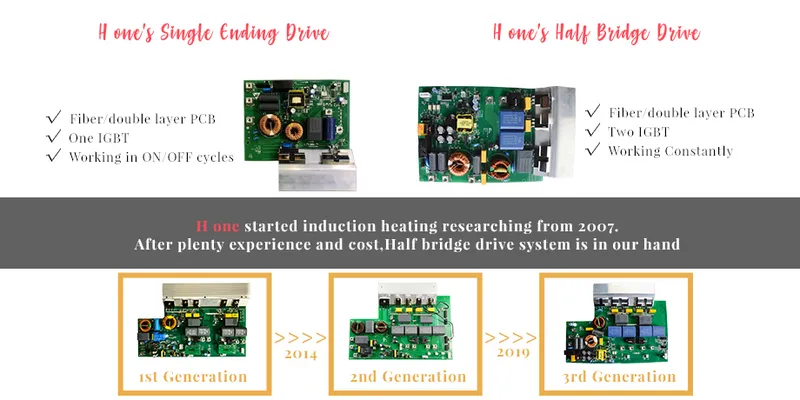

Induction heating curve graph

Internal Construction Details

Detailed Component Schematics

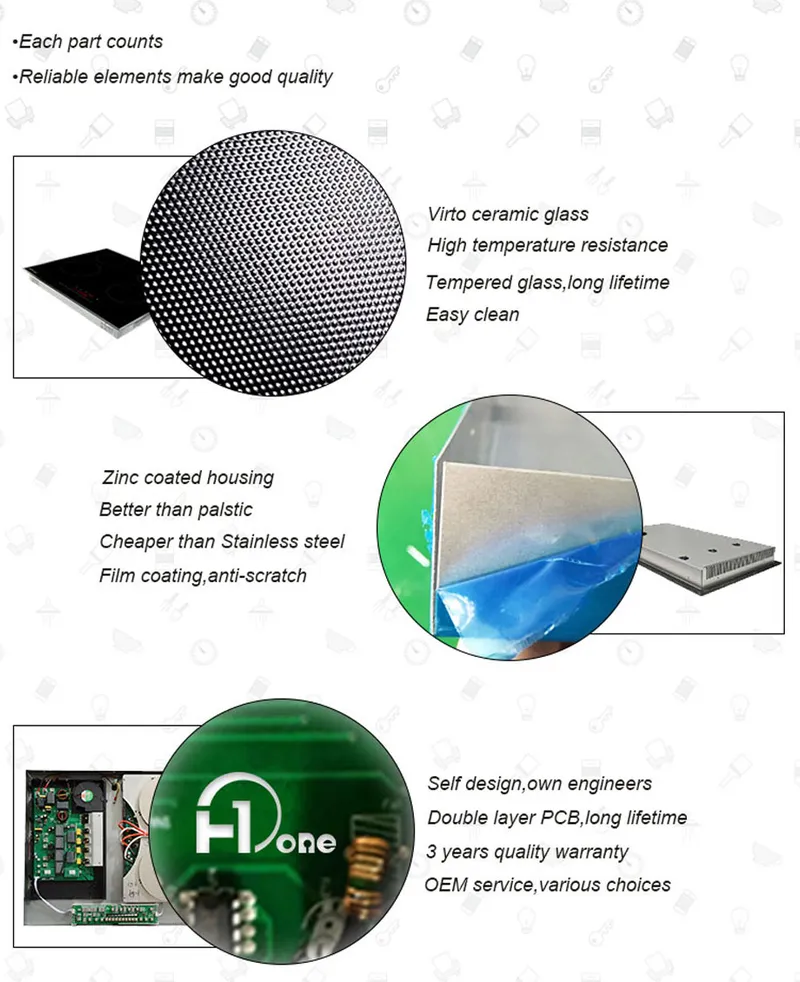

Internal parts explosion view
Electronic circuits layout

ODM Manufacturing & Support

Flexible customization to fit your regional market demands and branding plans.

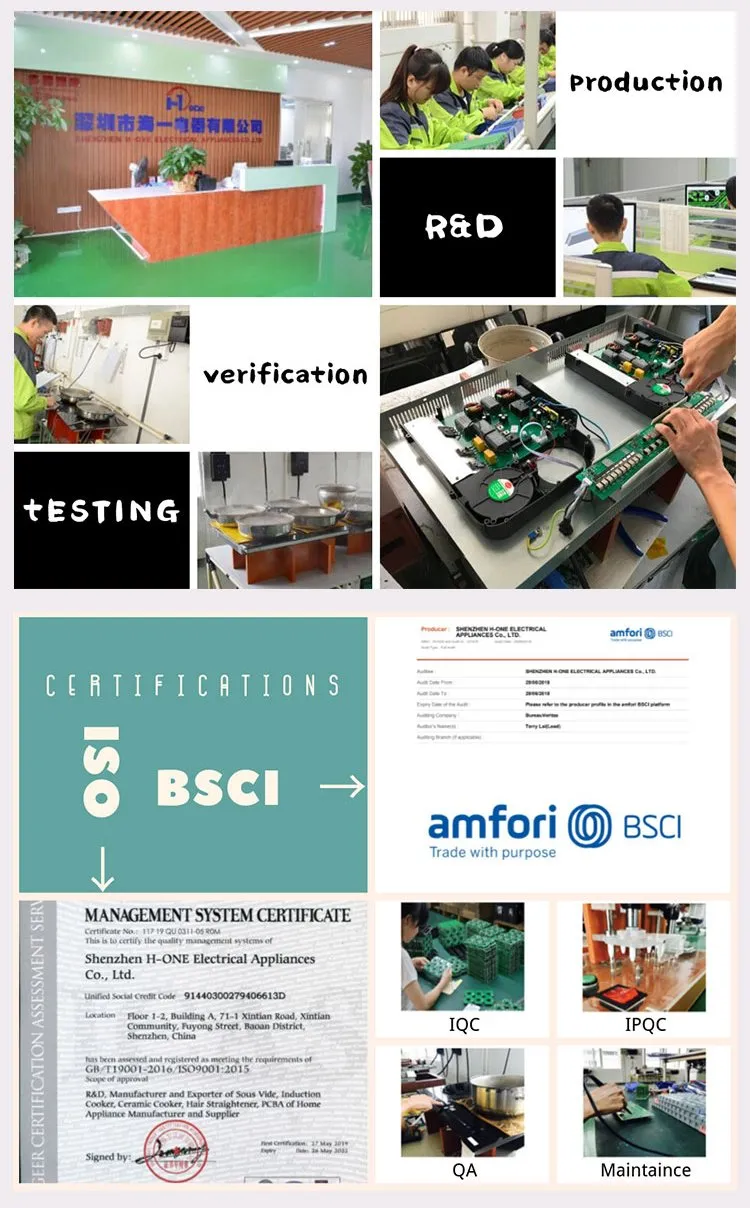

Advanced assembly production facility
ODM services acceptance certification

Frequently Asked Questions

1. How does the induction heating system work?
An alternating electric current passes through a copper coil located beneath the cooktop glass. This generates an oscillating magnetic field which directly induces an electrical current within the cooking pot. The resistance of the pot leads to rapid, direct heating. This direct heat transfer method allows for high energy efficiency (88%-90%) and instantaneous adjustments in temperature.
2. What are the installation cut-out dimensions for model 8250-259?
The product has overall dimensions of 910*520*55 mm. The cutout dimensions required for standard countertop installation are 880*490 mm.
3. What types of cooking zones are featured on this hybrid hob?
This unit features 5 zones: two Left Induction zones (210*180mm, 1800W/2500W), one Middle Induction zone (φ280mm, 2700W/3500W), one Right Front Infrared zone (φ165mm, 1200W), and one dual-ring Right Rear Infrared zone (φ145mm/φ230mm, 1100W/2200W).
4. What smart functions are available on this model?
The system integrates with the Tuya smart home platform. This permits remote status verification and Cloud Recipes operation via an App. Users can also record cooking steps, save up to 9 custom cooking recipes, and make use of a wireless temperature probe for precise heat management.
5. What safety safety mechanisms are pre-installed?
It features automatic pan detection, residual heat indicators, child safety lock, dry-burning protection, over/low voltage protection, automatic idle shut-off, and high-temperature electrical safety cutoff features.
6. What type of cookware is suitable for this cooktop?
The induction zones require ferromagnetic cookware (such as cast iron or magnetic stainless steel). The infrared zones work with any flat-bottom heat-resistant cookware including glass, ceramic, copper, and aluminum vessels.
